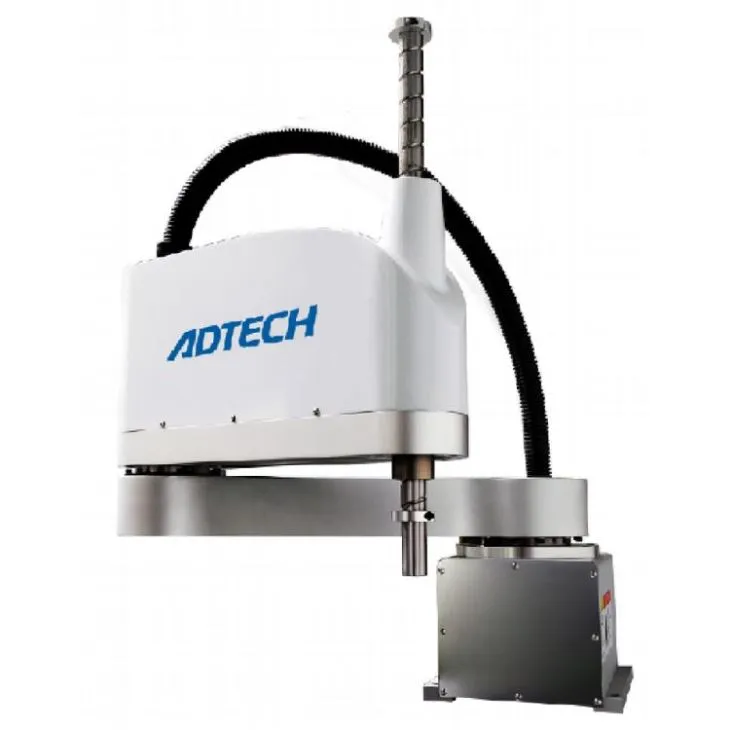

Pick And Place Robot For Sorting And Assembly AR81030
Product Introduction
Model | AR81030 | ||
Species | SCARA | ||
Number of axes | 4 | ||
Arm length | 800mm | ||
Axis Specification | X Axis | Arm Length | 400mm |
Rotation Range | ±145° | ||
Y Axis | Arm Length | 400mm | |
Rotation Range | ±150° | ||
Z Axis | Route | 300mm | |
R Axis | Rotation Range | ±360° | |
Highest Speed | X Axis | 300°/s | |
Y Axis | 375°/s | ||
X,Y Axis Synthesis | 6.8m/s | ||
Z Axis | 1.4m/s | ||
R Axis | 1000°/s | ||
Standard Cycle Time | 0.38s | ||
Repeat | X,Y Axis | ±0.003mm | |
Z Axis | ±0.02mm | ||
R Axis | ±0.01° | ||
Rated / Max Load | 10KG/20KG | ||
R Axis Allow Load Moment of Inertia(Rated/Max) | 0.1 KG/㎡ | ||
0.5 KG/㎡ | |||
User Signal Line | 0.2²×16Lines, | ||
Users Pipe | φ6×2 Root | ||
Limit Protection | 1.Software Limit | ||
Weight | 44.8KG | ||
Feature and Application
* Imported encoder
* HD reducer
* Teaching pendent
* Control cabinet
• Lightweight structure, rapid response, high kinematic accuracy, high precision, fast running speed,space-saving and large work space.
• Based on mature industry application technology platform, easy operation and high performance.
Applications
Food, cosmetics, articles for daily use:
The box assembly of cosmetics, convenience food packaging, candy and chocolate packaging.
Why Choose Us
• Compact contour,quick response and high kinematic accuracy,with the advantage of high rigidity, high precision, small installation space and large work space, SCARA robot is widely applied to industrial areas, such as pick & place,displacement, stamping, bending, deburring, visual sorting, logo inspection, screwing, plug-in machine, PCB loading, soldering, barcode scanning etc.
• Our SCARA robots are all based on mature industry application technology with flexible programming.
• We're one of the earliest R&D and manufacturer of SCARA Robot to ensure the competitiveness of technology and performance with good reputation in the market.
Moving Space
Main Products
Packaging & Shipping
Industrial exporting packing,or upon the customer's request.
Many shipping options offered at your service, including DHL, UPS, TNT and FEDEX, Airfreight or by Sea.
